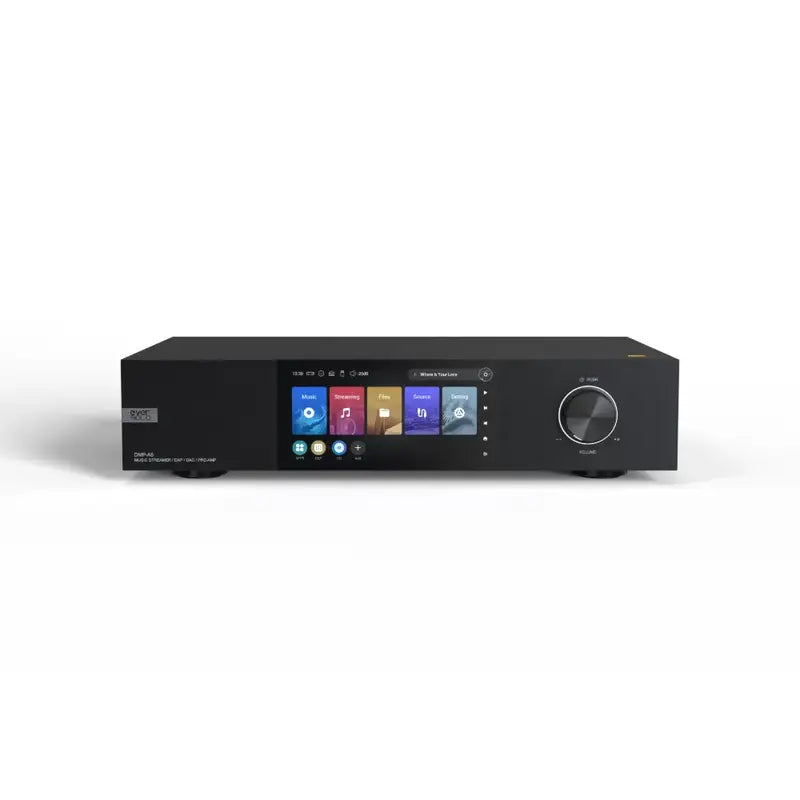

Eversolo DMP-A8 – Streamer musicale Hi-Fi

CONTATTACI



Eversolo DMP-A8 è un music streamer all’avanguardia con DAC AK4499EX, affiancato dal chip AK4191EQ, doppio clock femtosecondo, alimentazione lineare, preamplificatore integrato e sistema operativo avanzato. Massime prestazioni audio in un design raffinato e funzionale.

Specifiche tecniche

• Display: 6” LCD touchscreen
• Internal Memory: 4GDDR4 +64GeMMC
• DAC: AK4191EQ+AK4499EX
• Audio Processor: XMOS XU316
• Op-amp Chip: OPA1612
• Power Supply: High-quality, low-noise linear + digital dual power supply
• SSD: Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn’t included)
• USB-A Port: USB3.0*2
• Ethernet: RJ-45 (10/100/1000Mbps)
• WiFi: WiFi 2.4G+5G dual band
• Playback and DAC Decoding: Support up to stereo DSD512, PCM 768KHz 32Bit
• Music Service: Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
• Streaming: Roon Ready, Air Play, DLNA, Tidal Connect etc.

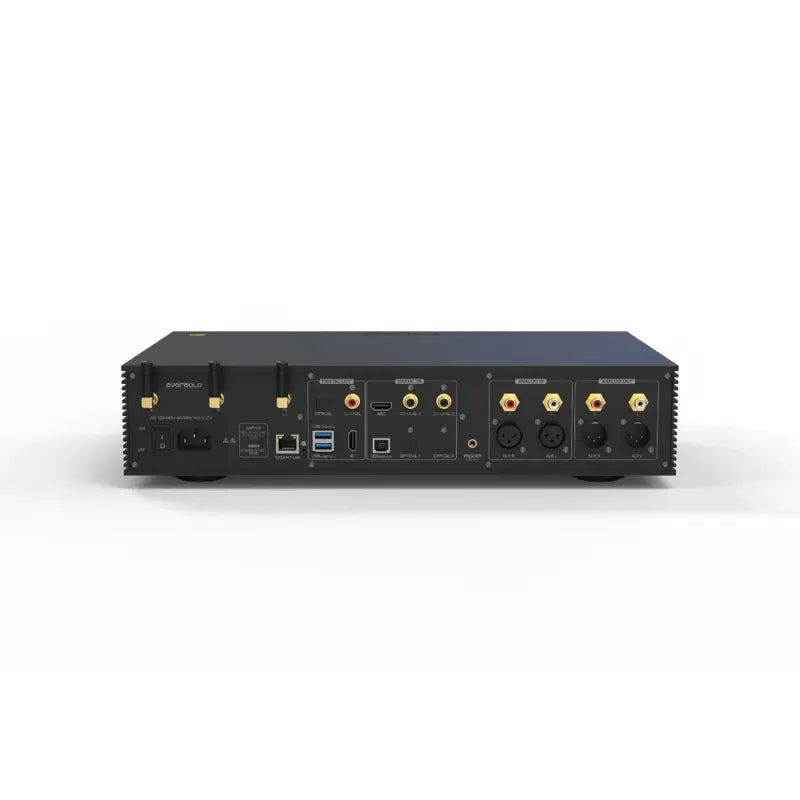

Audio Input and Output

• Bluetooth Audio Input: Bluetooth BT5.0, support SBC/AAC
• USB-B Audio Input: Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit
• Optical/Coaxial Audio Input: Support up to stereo PCM 192KHz 24Bit, Dop64
• HDMI ARC: Support up to stereo PCM 192KHz 24Bit
• Analog preamp audio input: XLR (Balanced)*1 + RCA (Unbalanced), Maximum Gain +10dB
• USB Audio Output: Support up to stereo DSD512, PCM 768KHz 32Bit
• IIS Output: Support up to stereo DSD512, PCM 768KHz 32Bit
• Optical/Coaxial Audio Output: Support up to stereo PCM 192KHz 24Bit, Dop64
• Analog Audio Output: Preamp Audio Output: XLR (Balanced) + RCA (UnBalanced)

XLR Output Audio Characteristics

• Output level: 4.2V
• Frequency response: 20Hz ~ 20KHz (±0.25dB)
• Dynamic range: > 128dB
• SNR: > 128dB
• THD+N: < 0.00009% (-120dB) @No-wt
• Crosstalk: > -121dB

RCA Output Audio Characteristics

• Output level: 2.1V
• Frequency response: 20Hz ~ 20KHz (±0.25dB)
• Dynamic range: > 125dB
• SNR: > 125dB
• THD+N: < 0.00010% (-119dB) @A-WT
• Crosstalk: > -121dB

Altre informazioni

• Control Method: Mobile App, Touch screen control, IR + Bluetooth remote control
• PSU: AC 110~240V 50/60Hz Max 0.35A
• Rated Power: 16W
• Dimensions: L 248mm × P 388mm × H 90mm
• Packing List: Power cable1, Remote Control1, Screwdriver1, user manual1
