Eversolo DMP-A6 Gen 2 – Streamer musicale Hi-Fi

CONTATTACI

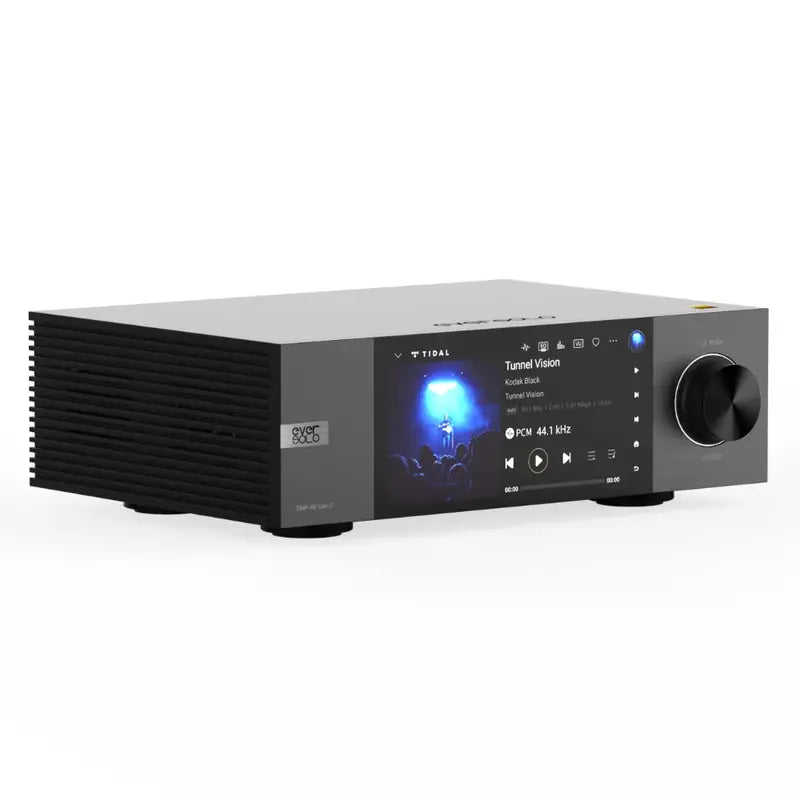

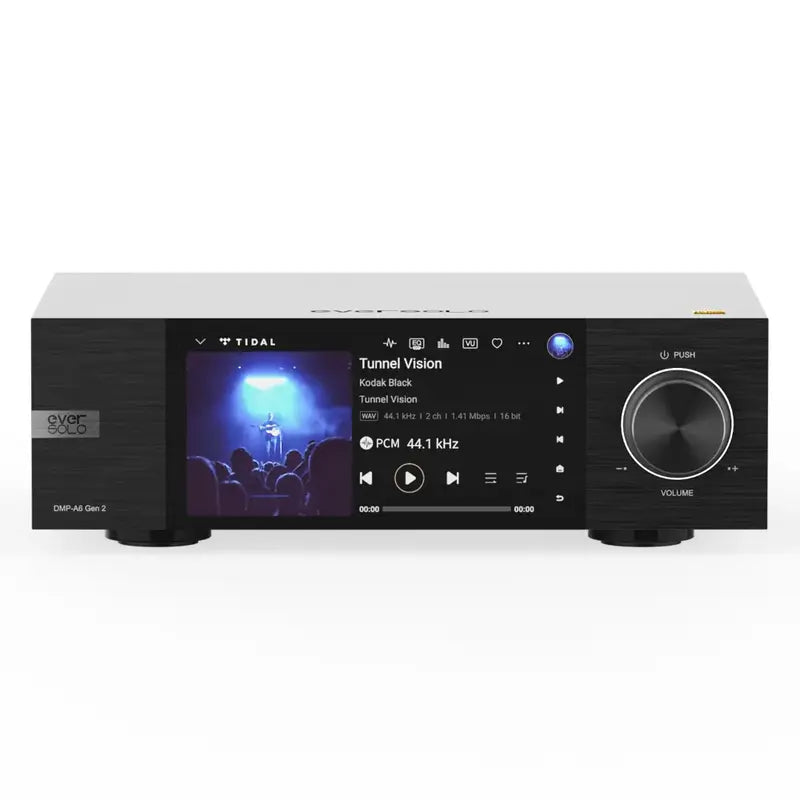

IL Eversolo DMP-A6 Gen 2 è uno streamer musicale di fascia alta con DAC dual mono ES9038Q2M, alimentazione lineare, touchscreen, supporto DSD512 e PCM 768kHz, connettività di rete completa e costruzione in alluminio di grado aerospaziale.

Specifiche tecniche

• Display: 6-inch LCD Touchscreen
• Internal Memory: 4GDDR4 + 32G eMMC
• DAC: ES 9038Q2M2
• Audio Processor: XMOS XU316
• Power Supply: Low Noise, High-Quality Linear Power Supply
• Built-in SSD Slot: M.2 NVME 3.0 2280 Interface Protocol, Supports up to 8TB
• USB-A Ports: USB3.02
• Ethernet: RJ-45 (10/100/1000Mbps)
• Wireless Network: WiFi 2.4G + 5G Dual-Band
• Music Playback and DAC Decoding: Supports up to Stereo DSD512, PCM 768kHz
• 32Bit, MQA Format
• Music Services: TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music, IDAGIO, Calm
• Radio, Internet Radio, TuneIn, Radio Paradise, Deezer, SoundCloud, Presto Music,Apple Music*…
• Network Protocol: WebDAV, UPnP, NFS, SMB, Onedrive, Drop box, emby, Plex…
• Streaming: Roon Ready, DLNA, TIDAL Connect…
• Control Methods: Mobile App Control, Touchscreen Control, Tablet App Control,
• TRIGGER OUT, WOL

Audio Input and Output

• Bluetooth Audio Input: Bluetooth BT5.0, Supports SBC/AAC
• USB-B Audio Input: USB Audio Compatibility: Windows (10, 11), Mac, Android, iOS
• USB-B DAC Decoding Support: Supports up to Stereo DSD512, PCM 768kHz 32Bit, MQA Format
• Optical/Coaxial Audio Input: Supports up to Stereo PCM 192kHz 24Bit, Dop64, MQA Format
• HDMI ARC Input: Supports up to Stereo PCM 192kHz/24Bit
• USB Audio Output: Supports up to Stereo DSD512 Native, PCM 768kHz 32Bit, MQA Format
• HDMI Audio Output: DSD64 Native multichannel / PCM 192kHz multichannel raw output, up to 5.1
• Optical/Coaxial Audio Output: Supports up to Stereo PCM 192kHz 24Bit, Dop64, MQA Format

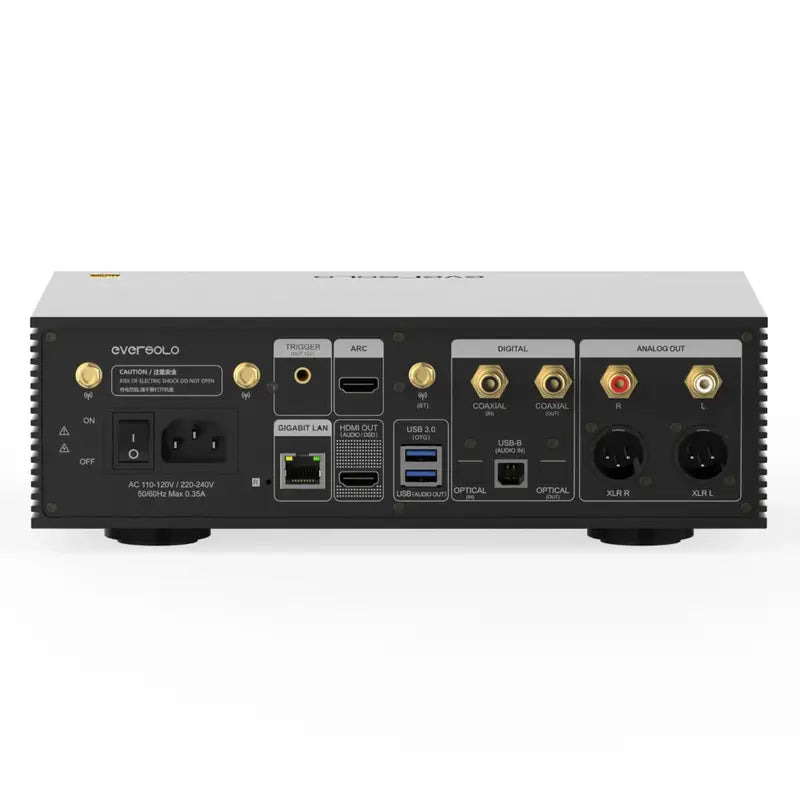

• Analog Audio Output: Pre-output: XLR (Balanced) + RCA (UnBalanced)

Caratteristiche Audio

• XLR Output – Output Level: 5.2V
• XLR Output – Frequency Response: 20Hz ~ 20kHz (±0.15dB)
• XLR Output – Dynamic Range: >128dB
• XLR Output – SNR: >128dB @A-wt
• XLR Output – THD+N: <0.00009% (-120dB)
• XLR Output – Crosstalk: >-125dB
• RCA Output – Output Level: 2.6V
• RCA Output – Frequency Response: 20Hz ~ 20kHz (±0.2dB)
• RCA Output – Dynamic Range: >124dB
• RCA Output – SNR: >124dB @A-wt
• RCA Output – THD+N: <0.00011% (-119dB)
• RCA Output – Crosstalk: >-124dB

Altre informazioni

• PSU: AC 110~240V 50/60Hz Max 0.35A
• Rated Power: 13W
• Dimensions: L 187mm × W 270mm × H 90mm
• Packing List: Power Cable1, USB Data Cable1, Trigger Cable1, User Manual1
